Sweeper

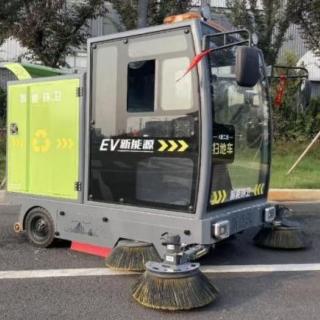

Five Brush YX-G240 Sweeper

1 Model YX-G240

2 Sweeping width 2450mm

3 suction width 800mm

4 working efficiency 28000-40000m²/h

 5 working hours 3-8h

 6 Dustbin capacity 240L

7 Side-brush diameter Front 700mm Middle 600mm

8 Walking speed 0-30km/h

9 Overall dimensions 3800*2450*2200mm

10 water tank 600L

 11 Vacuum filtration area 300m²

12 Tyre model 135/70R12

13 control mode Intelligent control system (timed dust shaking function)

Warning lights

1 Headlight Four way LED headlights

 2 tail light Steering+braking+driving integrated taillights

3 Alarm lamp Top operation warning light

 4 HD reverse camera

Storage battery ：

1 Type Lead acid maintenance free (optional with lithium battery)

2 Battery capacity Standard 60V-240AH /300AH/400AH

Electrical machinery

 1 Walking motor 3000W intelligent gear change

2 Suction motor 4000W

3 side-brush motor 4*100W

 4 Motor voltage 60V

High pressure water pump

1 High pressure fogcannon range 6-10m

2 High pressure water-gun range 10-18m

3 power 1500W

4 Pressure range 0-13Mpa

5 Max rate of flow 11L/min

Rearview mirror ：

1 model Dedicated for sweeping vehicles

 Note: Machine performance: The combination of suction, sweeping, and spraying effectively suppresses dust and thoroughly cleans ground waste and dust. Place of use: Used for cleaning workshop, parks, streets, lanes, docks, property communities, warehouses, sports venues, schools, airports, and other areas in the factory area. The cleaning efficiency is 10 times that of the traditional manual cleaning, and one sweeper can replace 8-12 Cleaner.
