Sweeper

Three brush Sweeper

Component Name	Serial Number	project	Parameter values/specifications
Complete vehicle	1	Model	YX-14A
	2	Sweeping width	1400mm
	3	Main brush width	600mm
	4	working efficiency	10000m²/h
	5	working hours	2-4h
	6	Dustbin capacity	100L
	7	Side-brush diameter	500mm
	8	Walking speed	0-14km/h
	9	Overall dimensions	158014001420mm
	10	water tank	80L
	11	Vacuum filtration area	5m²
	12	Tyre type	Front 400-6, rear 300-8 solid tyre
	13	control mode	Intelligent control system (timed dustshaking function)
Warning lights	1	Headlight	Four way LED headlights
	2	tail light	Steering+braking+drivingintegratedtaillights
	3	Alarm lamp	Top operation warning light
Storage battery	1	Type	Lead acid maintenance free (optionalwith lithium battery)
Storage battery	2	Battery capacity	Standard48V-63AH4/80AH4/100AH*4lead-acid battery
Electrical machinery	1	Walking motor	650W intelligent gear change
	2	Rolling brush motor	1000W
	3	side-brush motor	2*100W
	4	Motor voltage	48V
Rearview mirror	1	model	Dedicated for sweeping vehicles

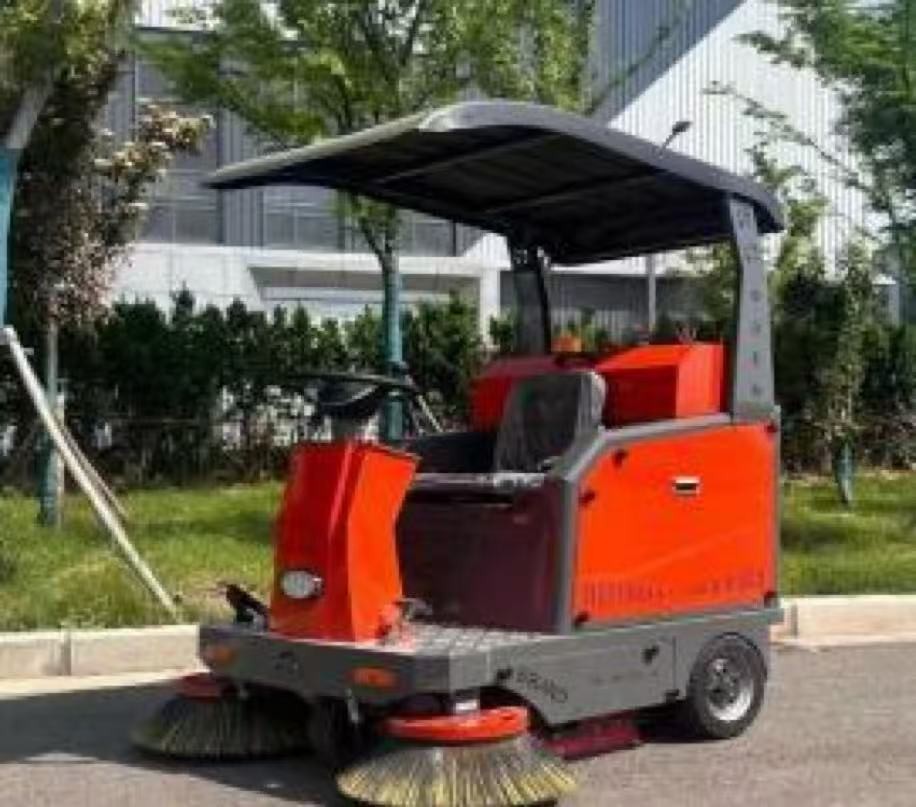

Note: Standard single fan, optional with sunshade. Machine performance: The combination of suction, sweeping, and spraying effectivelysuppresses dust and thoroughly cleans ground waste and dust. Place of use: Used for cleaning workshop, parks, streets, lanes, docks, propertycommunities, warehouses, sports venues, schools, airports, and other areas in thefactory area. The cleaning efficiency is 10 times that of the traditional manualcleaning, and one sweeper can replace 8-12 Cleaner.
